Creating a stakeholder report

Exemplar References Section

"Raw data and additional supporting information is checked into the version-control
system with the build and tagged as PerfTest-{date}-{issue number}."

Creating a Stakeholder Report

Although eight key components of a stakeholder report are listed below, all eight may not
be appropriate for every stakeholder report. Similarly, there may be additional
information that should be included based on exactly what message you are trying to
convey with the report. While these eight components will result in successful
stakeholder reports most of the time, remember that sometimes creativity is needed to
make your message clear and intuitive.

Consider including the following key components when preparing a stakeholder report:
·

Criteria to which the results relate

A results graph

A table for single-instance measurements (e.g., maximum throughput achieved)

A brief verbal summary of the chart or graph in terms of criteria

Workload model (graphic)

Test environment (annotated graphic)

Summary of observations, concerns, and recommendations

References section

Exemplar Criteria Statement

"This report relates to end-user response time compliances as documented in the
requirements management system as requirements Perf### through Perf??? at one-half
of the expected peak load with the most commonly expected usage scenario."

Exemplar Results Graph

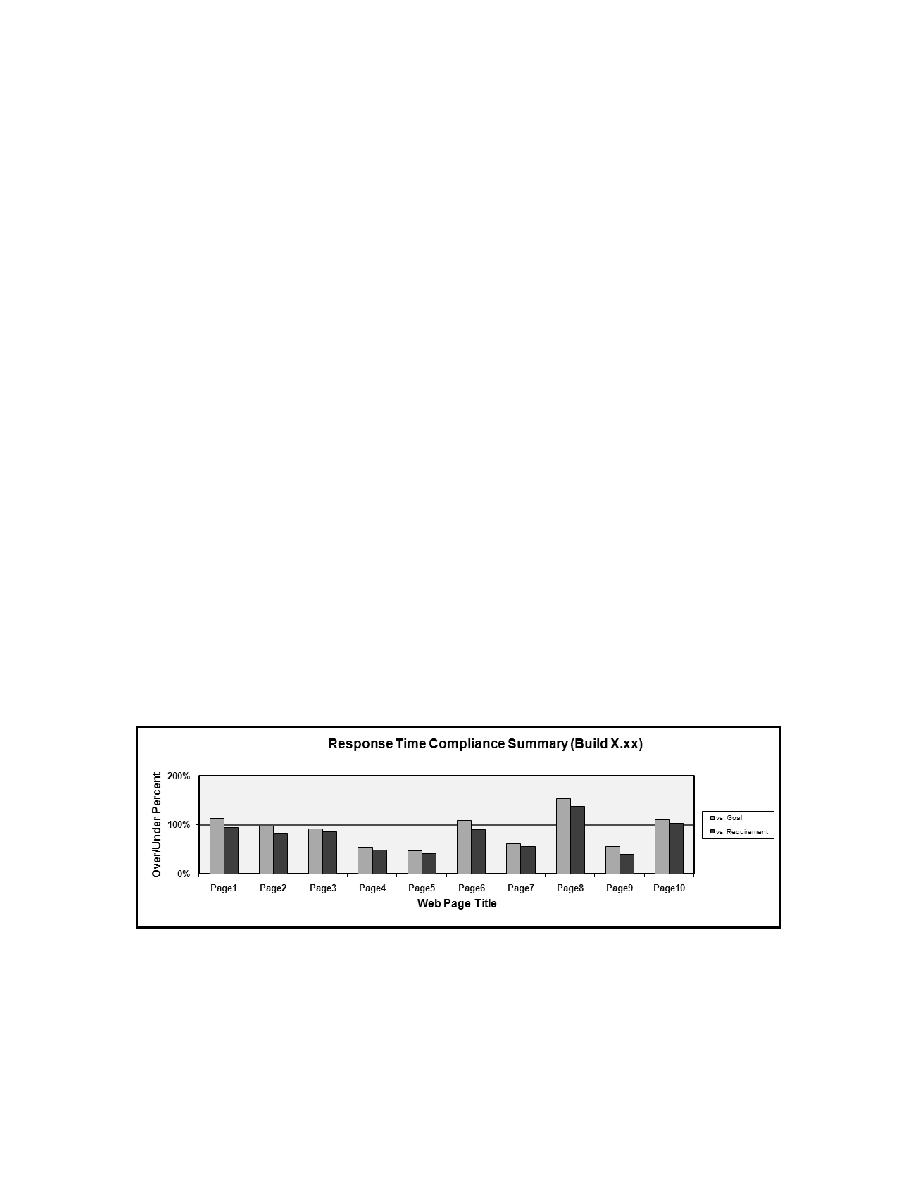

Figure 16.12 Response Time Compliance Summary
