Arrange Shipment use case
<< View the use case diagram | Create the requirement >>
72
Chapter 5 - Creating Requirements
Figure 20

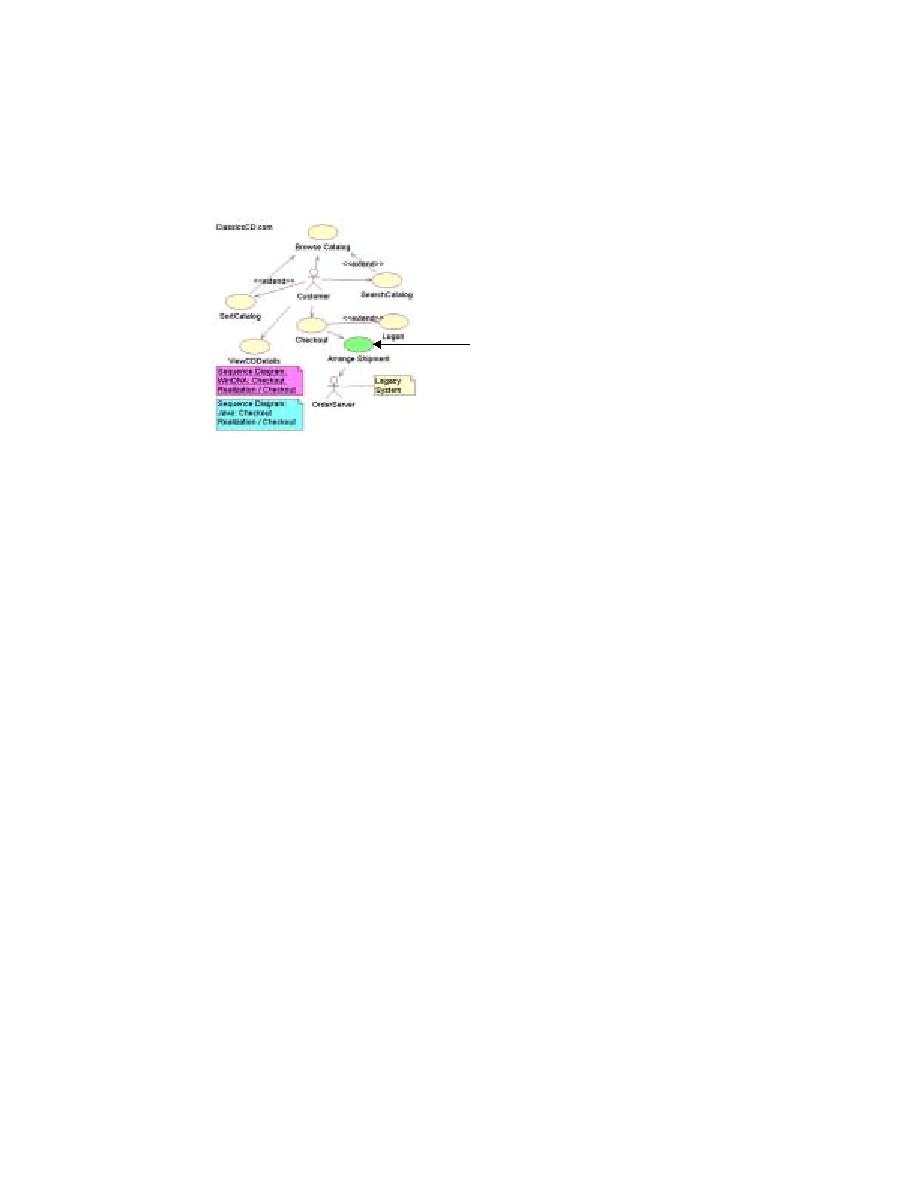

Viewing the ClassicsCD.com Use Case Diagram Using Rose
Associating the Rose Model with the RequisitePro Project
Earlier in this chapter, you opened the ClassicsCD.com Webshop project in
RequisitePro. In this section, you learn how to view the association between the
ClassicsCD.com Rose model with that project in RequisitePro. You also create the
requirement and link the use case with a requirement.
Exercise: View the association between the Rose model and the RequisitePro
project.
1
On the use case diagram, right-click the Arrange Shipment use case object. From the
shortcut menu, click View RequisitePro Association.
The RequisitePro Association dialog box appears and displays information about
the Arrange Shipment use-case document and the Arrange Shipment requirement
you saw earlier in this chapter.
2
After you finish reviewing the use case's RequisitePro association, click OK.
The Arrange Shipment use case is represented both in text and by a visual model. The
use case is a single element because of the integration between Rose and RequisitePro.
Arrange Shipment use case
